Alfresa Pharma Corporation

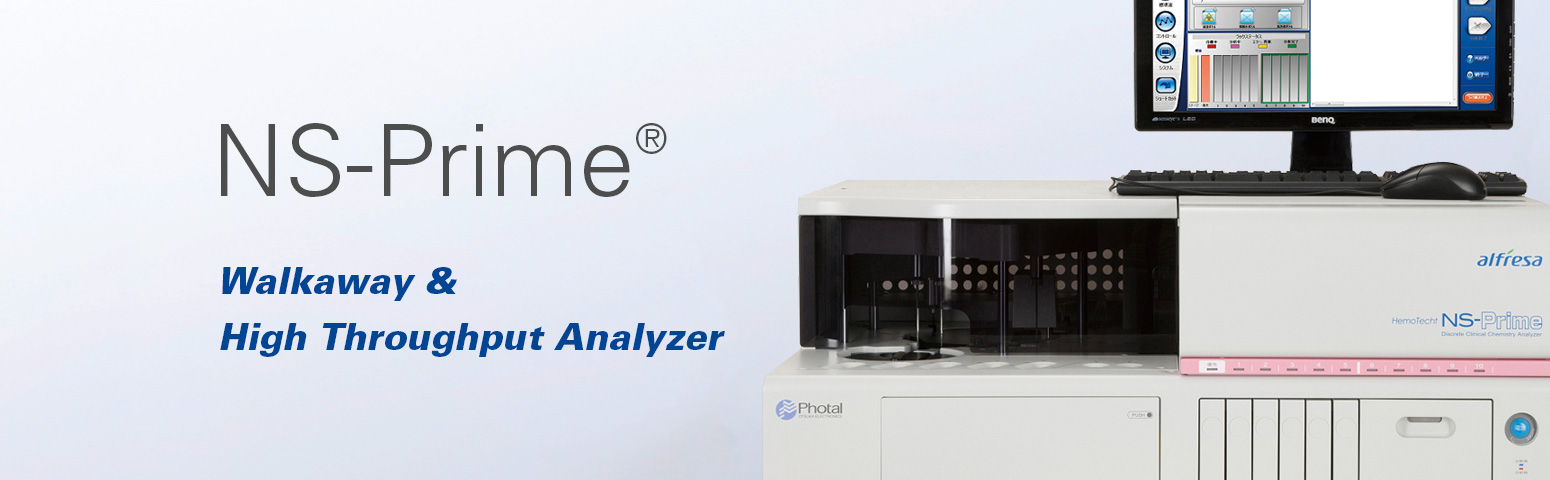

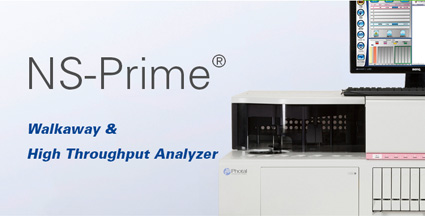

Discrete Clinical Chemistry Analyzer NS-Prime®

Walkaway and High Throughput Analyzer

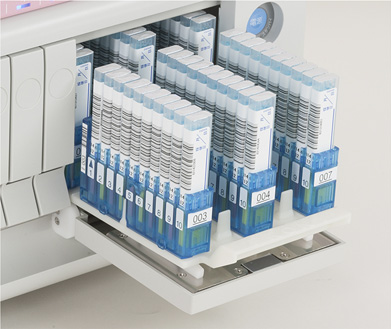

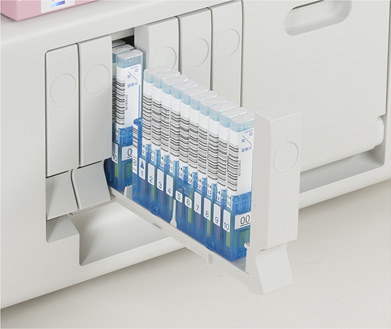

Sample capacity is up to 220 samples (including 20 STAT samples)

Throughput is up to 300 tests per hour

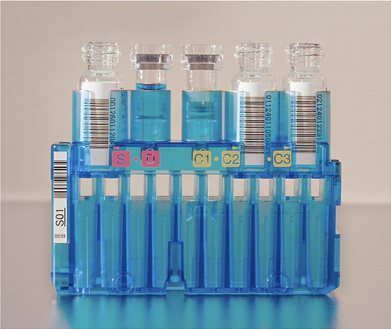

Easy operation with a barcode system

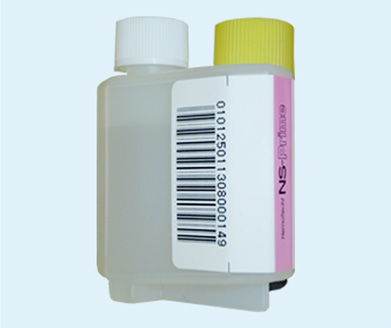

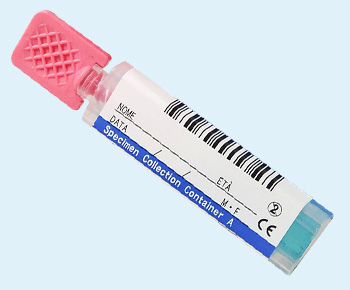

NS-Prime® automatically reads barcodes to allow automatic registration of all reagents and related products (reagent, calibrator, control, specimen collection container, and specimen diluent), eliminating the need for any manual registration process.

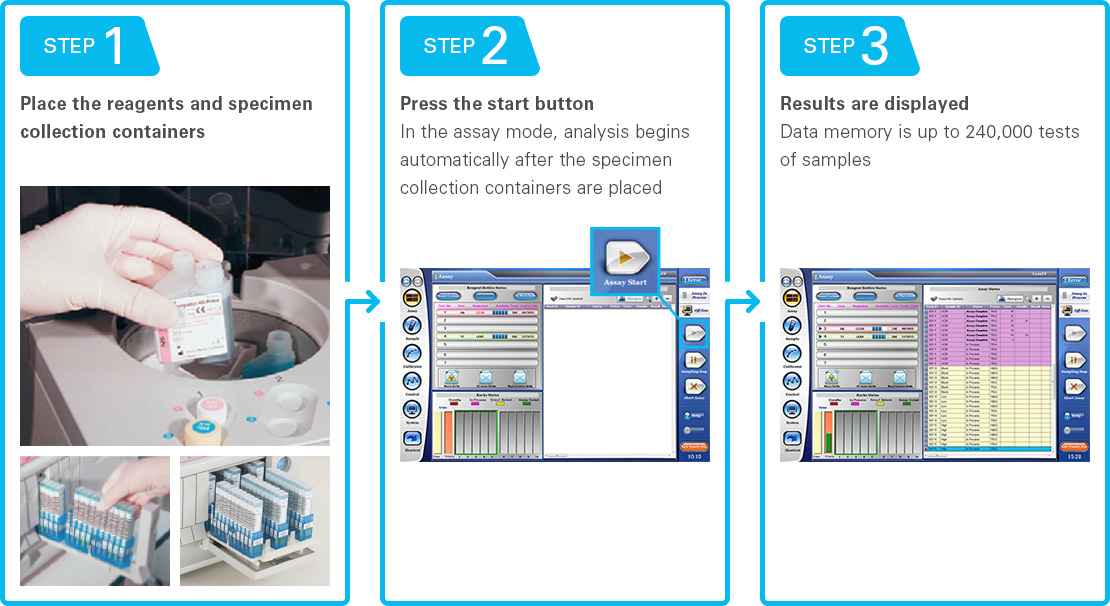

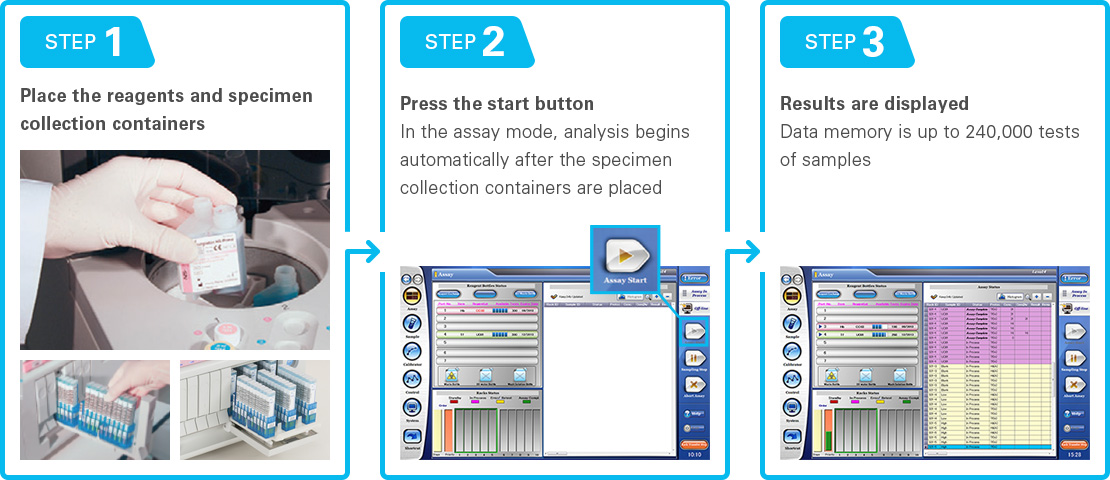

Test results become available in about 10 minutes in 3 steps*

  • Measurement of calibrator and control must be performed separately.

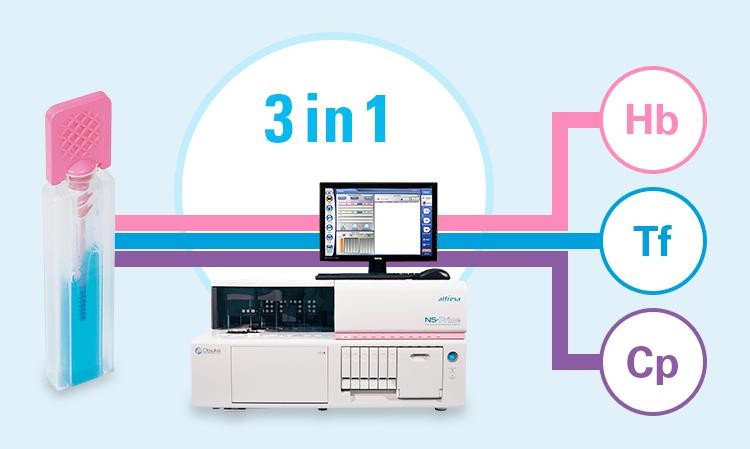

Simultaneous Multiple Assay

Multiple items can be measured simultaneously during FIT (fecal hemoglobin), fecal transferrin and fecal calprotectin tests.

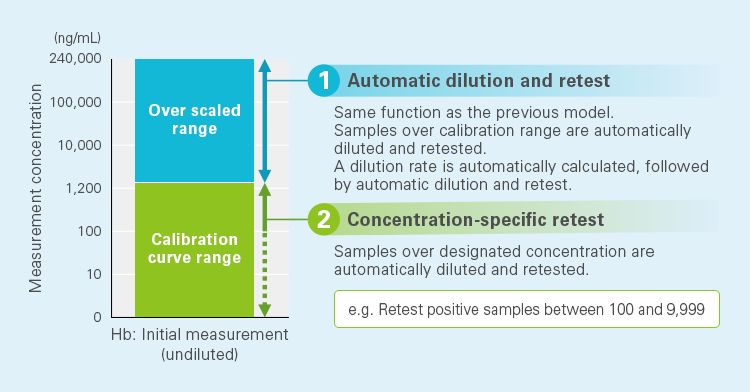

Automatic Dilution and Retest System

An automatic retest system evolved from the previous model is adopted. A concentration-specific retest function has been added to the automatic dilution and retest function, which was highly evaluated by users.

Basic Specifications

Product Name Discrete Clinical Chemistry Analyzer NS-Prime®
Measurement principle Colloidal gold agglutination
Maximum throughput Up to 300 tests per hour
Sample capacity 220 samples (10 x 22 racks)
STAT sample capacity 20 samples simultanously (10 x 2 racks)
Sample dilution Automatic dilution 1:1, 1:10, 1:100
Manual dilution 1:1, 1:3, 1:5, 1:10, 1:20, 1:100, 1:200
Reaction cells 10 x 5 semi-disposable resin-molded cells

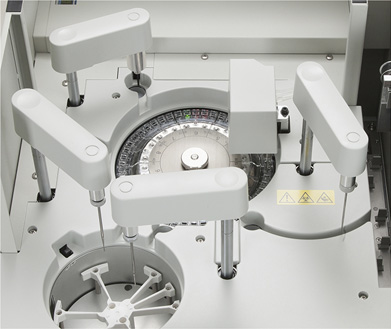

Sampling system 1 nozzle with liquid level sensing
Reagent dispensing sytem 2 nozzles with liquid level sensing
Mixing system 1 rotation mixing probe
Cleaning of cells/nozzles Automatic cleaning of reaction cells, nozzles and probe with detergent and DI water
Temperature control system Reaction table: Air bath-heating block
Reagent table: Cooling with Peltier cooler
Light source LED (wavelength: 540, 630 and 660 nm)
Sensor Photodiode
System control computer 1 master computer with a 19-inch color LED display, a keyboard and a mouse
Data memory 240,000 tests
Barcode Automatic reading of rack, sample, reagent, calibrator, control and specimen diluent barcodes
Dimensions W805mm x D620mm x H400mm (system main unit)
Weight Approx. 70 kg (system main unit)
Power requirements AC100-240V 50/60Hz, 400VA (system main unit)
